This is a transnational data set containing all transactions occurring between 01/12/2010 and 09/12/2011 for a UK-based and registered non-store online retail.
# Libraries
!pip install mpld3
import mpld3
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns # Just for some data
from plotnine import ggplot, geom_point, aes, stat_smooth, facet_wrap
import plotnine
from plotnine import *
from plotnine import ggplot, geom_boxplot, aes, theme, element_text, element_blank, scale_y_log10, labs, element_rect, guides, scale_color_manual
from plotnine.themes import theme_minimal
from plotnine.geoms import geom_hline, geom_jitter
from plotnine.scales import scale_fill_brewer
from plotnine import facet_wrap
from mizani.breaks import date_breaks
import plotly.express as px # used for interactive visualizations
import plotly.graph_objects as go
from plotly.offline import plot
from plotly.offline import init_notebook_mode, iplot # plot plotly graphs in line in a notebook
import pycountry
import calendar
import warnings
warnings.filterwarnings("ignore") # ignores warnings
data = pd.read_csv('online_retail_cleaned.csv')
data.head(10)
# calculate total sales by country
country_sales = pd.DataFrame(data.groupby("Country") \
["ItemTotal"].sum()).reset_index().rename({"ItemTotal":"TotalSales"},axis=1)
fig = px.pie(country_sales,
values="TotalSales",
names="Country",
title="Percent of Total Sales by Country",
color_discrete_sequence=px.colors.qualitative.G10
)
fig.update_traces(
textposition="inside",
textinfo="percent+label"
)
fig.update_layout(
margin=dict(l=20, r=70, b=20, t=90, pad=0),
titlefont=dict(size=20),
width=800,
height=600
)
# Save the animation as an HTML file
plot(fig, filename='Percent of Total Sales by Country.html', auto_open=False)
iplot(fig)
Major Contribution: We can see that the UK has a major contribution towards sales.
Now, We will plot this map without the UK sales since it would skew the scale due to its predominant share of sales.
# also drop "Unspecified" and "European Community" since they cannot be mapped
country_sales = country_sales[country_sales["Country"] \
.isin(["Unspecified", "European Community","United Kingdom"]) == False]

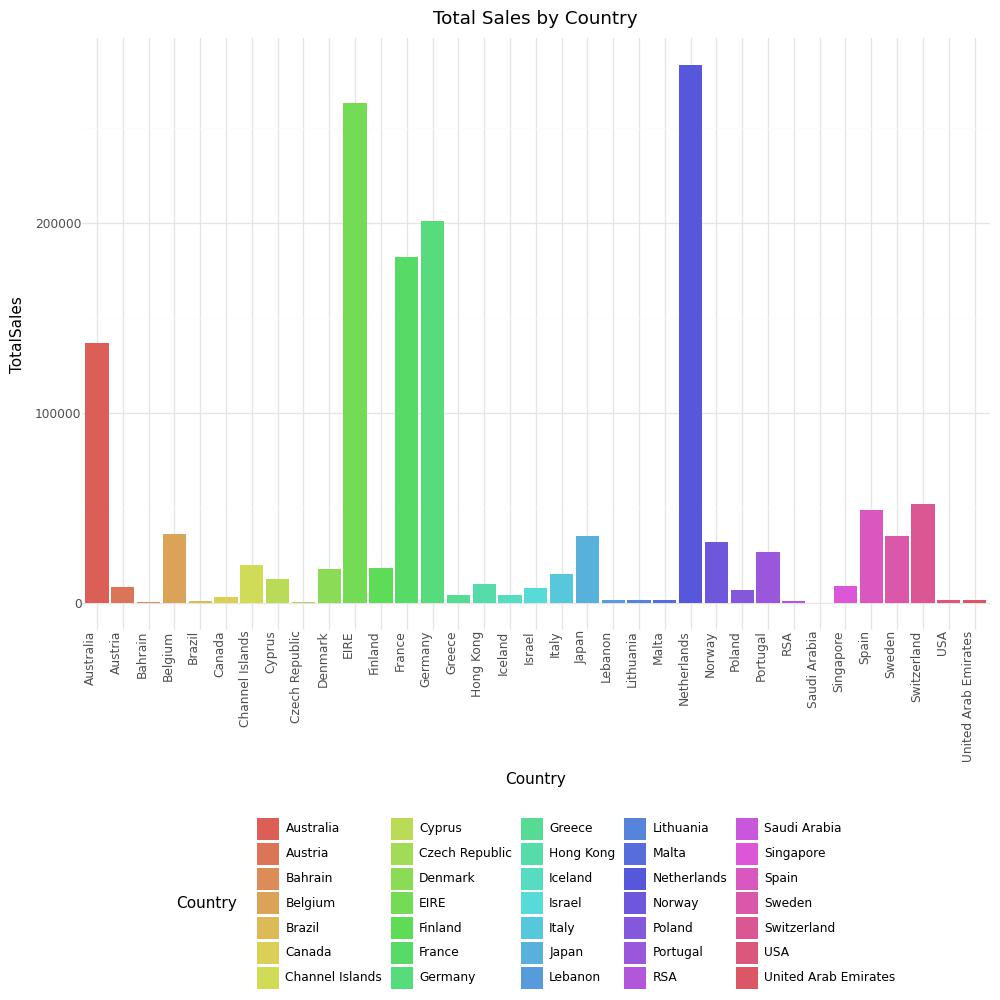

# Create bar plot using Plotnine
bar_plot = (
ggplot(country_sales, aes(x='Country', y='TotalSales', fill='Country')) +
geom_bar(stat='identity') +
labs(title="Total Sales by Country") +
theme_minimal() +
theme(axis_text_x=element_text(angle=90, hjust=1),
legend_position='bottom',
figure_size=(10, 10))
)
bar_plot.save("bar_plot.jpg")
bar_plot.show()
# rename countries into names which are recognised by plotly
country_sales["Country"] = \
country_sales["Country"].replace({"EIRE": "Ireland",
"Channel Islands": "United Kingdom",
"RSA": "South Africa"})
# https://stackoverflow.com/questions/59812824/plotly-express-plot-not-shown-in-jupyter-notebook
choro_data = dict(
type = "choropleth",
colorscale = "Agsunset",
locations = country_sales["Country"],
locationmode = "country names",
z = country_sales["TotalSales"].astype(float).round(0).tolist(),
hovertext = country_sales["Country"],
hovertemplate = "%{hovertext}: £%{z:,.0f}
# create columns extracting the year and month of InvoiceDates
data["year"], data["month"] = data["InvoiceDate"].dt.year, data["InvoiceDate"].dt.month
sales = data.groupby(["year","month"])["ItemTotal"].sum() \
.reset_index().rename({"ItemTotal":"TotalSales"},axis=1)
# create rows about April 2010 and November 2010 with averages from preceding and following month
new_rows = pd.DataFrame({"year":[2010,2010],
"month": [4,11],
"TotalSales": [38123.21,184980.04]},
index = [98,99]) # arbitrary indexes
# insert the row in the sales table
sales = pd.concat([new_rows, sales]) \
.sort_values(by=["year","month"]).reset_index(drop=True)
# convert numbers into month names
sales["month"] = sales["month"].apply(lambda x: calendar.month_abbr[x])
# combine month and year
sales["month"] = sales["month"].astype(str) + " " + sales["year"].astype(str)
# drop the redundant year column
sales = sales.drop("year", axis = 1)
sales = sales[0:23] # drop December 2011 since the data does not cover the whole month
# Define the order of months as they appear in the DataFrame
month_order = sales['month'].tolist()

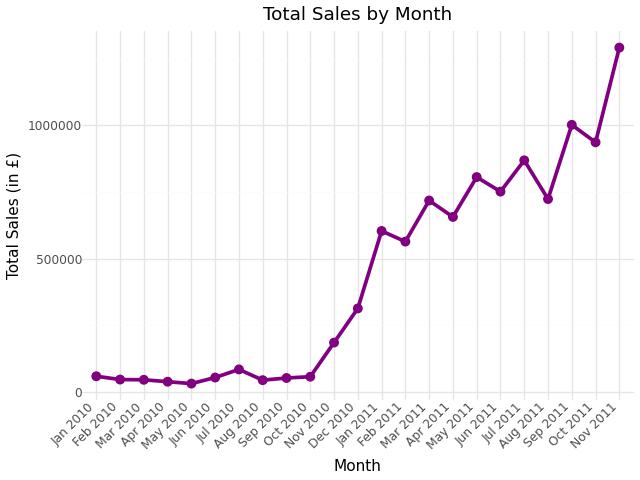

# Create line chart using Plotnine
line_chart = (
ggplot(sales, aes(x='month', y='TotalSales', group='factor(month.str[:0])')) + # Group by year
geom_line(color='purple', size=1.5) +
geom_point(color='purple', size=3) +
labs(title="Total Sales by Month",
x="Month",
y="Total Sales (in £)") +
theme_minimal() +
theme(axis_text_x=element_text(angle=45, hjust=1)) +
scale_x_discrete(limits=month_order) # Set the order of x-axis ticks
)
line_chart.save("line_plot.jpg")
line_chart.show()
Conclusion : We can see a clear upward📈 trend with initial sharp increses towards the end of 2010 and the beginning of 2011. Let's investigate whether the number of customers in each month exhibit a similar trend.
customers = data[data["CustomerID"].notna()].groupby(["year", "month"]) \
.agg({"CustomerID": "unique"}) \
.reset_index().rename({"CustomerID": "unique_customer_ids"}, axis = 1)
# calculate the number of unique customers and insert it as a column
customers.insert(2,"unique_customers_this_month", customers["unique_customer_ids"].str.len())
ids = []
# creates a running list of customerids up to each month
for index, row in customers.iterrows():
if index == 0:
ids.append(row["unique_customer_ids"].tolist())
else: # adds the present ids to the accumulated list of previous ids
ids.append(row["unique_customer_ids"].tolist() + ids[index-1])
total_customers = []
for i in range(len(ids)):
total_customers.append(len(set(ids[i]))) # the set removes duplicates
# insert as a column
customers.insert(3, "total_customers", total_customers)
# add the first difference of total_customers
customers.insert(3, "new_customers_this_month", customers["total_customers"].diff() \
.replace({np.nan: 98}).astype(int)) # fill in the first value
# drop the long lists of unique customers
customers = customers.drop("unique_customer_ids", axis = 1)
# create rows about April 2010 and November 2010 with averages from preceding and following months
new_rows = \
pd.DataFrame({"year":[2010,2010],
"month": [4,11],
"unique_customers_this_month": [65,271],
"new_customers_this_month": [59,163],
"total_customers": [288,803]}, index = [98,99]) # arbitrary indexes
# insert the row in the customers table
customers = pd.concat([new_rows, customers]) \
.sort_values(by=["year","month"]).reset_index(drop=True)
# convert numbers into month names
customers["month"] = customers["month"].apply(lambda x: calendar.month_abbr[x])
# combine month and year
customers["month"] = customers["month"].astype(str) + " " + customers["year"].astype(str)
# drop the redundant year column
customers = customers.drop("year", axis = 1)
customers = customers[0:23] # drop December 2011 since the data does not cover the whole month
trace1 = go.Scatter(
x = customers["month"],
y = customers["unique_customers_this_month"],
mode = "lines+markers",
name = "Unique Customers This Month",
line = dict(width = 4),
marker = dict(
size = 10,
color = "#0E79B2"
),
hovertemplate = "%{x}
Unique Customers: %{y}
New Customers: %{y}
Total Customers: %{y}
# Make a copy of customers DataFrame
customers_ = customers.copy()
# Convert "month" column to datetime type with specified format
customers_['month'] = pd.to_datetime(customers_['month'], format='%b %Y')
# Plot using Plotnine
(ggplot(customers_)
+ aes(x='month')
+ geom_line(aes(y='new_customers_this_month'), color='blue', size=1, show_legend=True)
+ geom_point(aes(y='new_customers_this_month'), color='blue', size=2)
+ geom_line(aes(y='unique_customers_this_month'), color='red', size=1, show_legend=True)
+ geom_point(aes(y='unique_customers_this_month'), color='red', size=2)
+ labs(x='Month', y='Customers', color='Plot')
+ theme_bw()
+ theme(axis_text_x=element_text(rotation=90, hjust=0.5))
+ scale_x_datetime(date_breaks="1 month", date_labels="%b %Y")
+ scale_y_continuous(breaks=range(0, max(customers_['unique_customers_this_month'])+1, 100))
+ scale_color_manual(values=["blue", "red"], labels=["New Customers", "Unique Customers"])
)
💡We can check that invoices either have missing values for all CustomerIDs, or no CustomerIDs are missing. Since we do not know how many customers have an NaN value for CustomerID, we drop records with missing CustomerIDs for this analysis.
Observations:
Strategy 💡:
# take data only about December 2010 and October, Novermber and December 2011
subset = data[
((data["year"] == 2010) & (data["month"] == 12))
|
((data["year"] == 2011) & (data["month"] == 10))
|
((data["year"] == 2011) & (data["month"] == 11))
|
((data["year"] == 2011) & (data["month"] == 12))
]
# extract the hour of purchase from InvoiceDate and add it as a column
subset["hour"] = subset["InvoiceDate"].astype(str).str[11:13].astype(int)
# calculate the total number of orders for each hour of the day in these months
frequency = subset.groupby(["year","month","hour"]) \
.agg({"InvoiceNo":"nunique"}).reset_index() \
.rename({"InvoiceNo": "num_orders"}, axis = 1)
pivot = frequency.pivot(index = "hour", columns = ["year","month"], values = ["num_orders"])
pivot = pd.DataFrame(pivot.to_records()) # flattens multilevel column headings
pivot["hour"] = pivot["hour"].astype(str) + ":00" # make hours more readable
pivot = pivot.set_index("hour")
pivot.index.name = "" # remove index name for plotting
pivot.rename(columns={ # set more readable names
pivot.columns[0]:"Dec 2010",
pivot.columns[1]:"Oct 2011",
pivot.columns[2]:"Nov 2011",
pivot.columns[3]:"Dec 2011"
}, inplace = True)
# Apply styling
styled_df = pivot.replace(np.nan, 0).style \
.background_gradient(cmap="rocket", subset=["Dec 2010"]) \
.background_gradient(cmap="rocket", subset=["Oct 2011"]) \
.background_gradient(cmap="rocket", subset=["Nov 2011"]) \
.background_gradient(cmap="rocket", subset=["Dec 2011"]) \
.format("{:.0f}")
# Convert styled DataFrame to HTML and save to a file
styled_df.to_html("heatmap_table.html", escape=False)
print(styled_df)
# Transpose the DataFrame to have hours as rows and months as columns
pivot_transposed = pivot.T.reset_index()
# Rename the columns to match the required format
pivot_transposed.columns = ['month', '7:00', '8:00', '9:00', '10:00', '11:00', '12:00', '13:00', '14:00', '15:00', '16:00', '17:00', '18:00', '19:00', '20:00']
# Melt the DataFrame to long format
melted_df = pivot_transposed.melt(id_vars=['month'], var_name='hour', value_name='orders')
# Convert hour to categorical to maintain the order
melted_df['hour'] = pd.Categorical(melted_df['hour'], categories=['7:00', '8:00', '9:00', '10:00', '11:00', '12:00', '13:00', '14:00', '15:00', '16:00', '17:00', '18:00', '19:00', '20:00'])

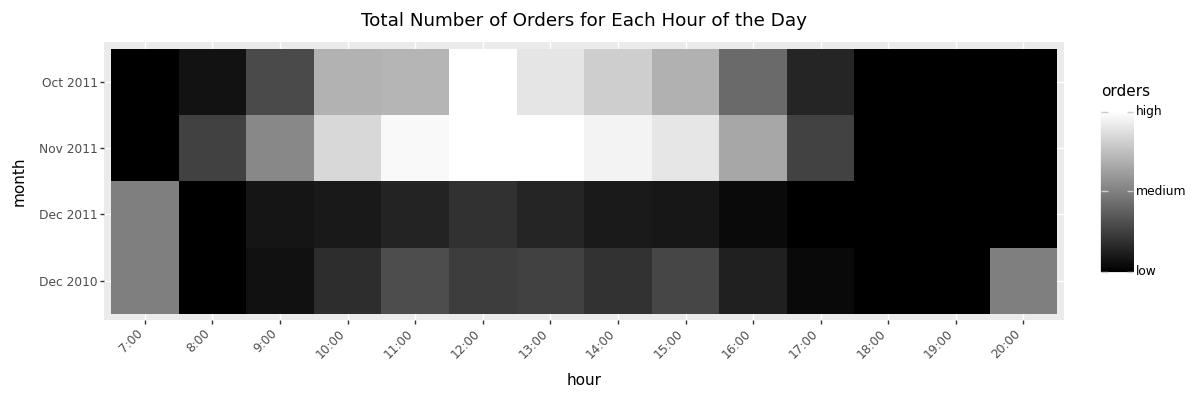

# Plot the heatmap
heatmap = (
ggplot(melted_df, aes(x='hour', y='month', fill='orders'))
+ geom_tile()
+ scale_fill_gradient(low="black", high="white", limits=[30, 350], breaks=[30, 190, 350], labels=["low", "medium", "high"])
+ theme(axis_text_x=element_text(angle=45, hjust=1),
figure_size=(12, 4))
+ ggtitle("Total Number of Orders for Each Hour of the Day")
)
# Show the heatmap
print(heatmap)
Conclusion : We can see, that the most orders are placed around midday, more specifically at 12:00. Therefore, the marketing team could target their campaigns around these times to maximize conversions.
Used Faceting(using plotnine)
# calculate total sales for each product in each country
sales_countr_descr = data.groupby(["Country", "Description"]) \
.agg({"ItemTotal": "sum"}) \
.rename({"ItemTotal":"TotalSales"},axis=1).reset_index()
# find the total sales of the best selling product in each country
max_sales = pd.DataFrame(sales_countr_descr.groupby("Country") \
["TotalSales"].max().reset_index()) \
.rename({"TotalSales":"Best_Product_Total_Sales"},axis=1)
# join the two tables from above together
joined_df = sales_countr_descr.merge(max_sales, on = "Country", how = "left")
# in other words, find the best selling item in each country
joined_df = joined_df[joined_df["TotalSales"] == joined_df["Best_Product_Total_Sales"]]
joined_df.head()
# drop the redundant column
joined_df = joined_df.drop("Best_Product_Total_Sales", axis = 1)
# total sales in each country
country_sales = pd.DataFrame(data.groupby("Country")["ItemTotal"].sum()) \
.reset_index().rename({"ItemTotal":"Country_Total_Sales"}, axis = 1)
joined_df = joined_df.merge(country_sales, on = "Country", how = "inner") \
.rename({"Description":"Best_Selling_Product"}, axis = 1)
joined_df["%_of_Country_Sales"] = (joined_df["TotalSales"] / joined_df["Country_Total_Sales"])
styled_df = joined_df.style.background_gradient(cmap=sns.light_palette("seagreen", as_cmap=True), \
subset=["%_of_Country_Sales"]) \
.format({"%_of_Country_Sales":"{:.2%}",
"TotalSales":"£{:,.0f}",
"Country_Total_Sales":"£{:,.0f}"})
print(styled_df)
df_ = pd.DataFrame(joined_df["Best_Selling_Product"].value_counts()) \
.rename({"Best_Selling_Product":"Best_Selling_Product_in_X_Countries"},axis=1)
print(df_)
💡A characteristic we could use to answer this is: which products of relatively high price have sold relatively high quantities. This can be easily visualized with a scatter plot of all products with total quantity sold and average unitprice on the x and y axes. Products' markers to the north-east on the scatter plot suggest relatively high quantities sold at a relatively high price.
# find total quantity sold and average unit price for all products
products = data.groupby("Description") \
.agg({"Quantity":"sum", "UnitPrice":"mean"}).reset_index()
products = products[products["Description"].isin(["DOTCOM","Manual","Discount"]) == False] # remove for plotting
trace = go.Scatter(
x = products["Quantity"],
y = products["UnitPrice"],
customdata = products["Description"],
hovertemplate = "%{customdata}
Quantity Sold: %{x}
UnitPrice: £%{y:.2f}
# Create a new DataFrame for tooltips
tooltip_df = products[['Description', 'Quantity', 'UnitPrice']]
# Define the plot
scatter_plot = (
ggplot(products, aes(x='Quantity', y='UnitPrice')) +
geom_point(size=10, color="#1199cf") +
labs(title="Products", x="Quantity Sold", y="Unit Price") +
theme_minimal() +
theme(
plot_title=element_text(size=20),
axis_text_x=element_text(size=10),
axis_text_y=element_text(size=10)
)
)
print(scatter_plot)
Conclusion : Above we saw "REGENCY CAKESTAND 3 TIER" as the most common best seller (8 countries) and here we see it as a high selling product as well - its marker is visually separated from the other products on the plot.
cust_purchases = \
data.groupby("CustomerID") \
.agg({"InvoiceNo": "nunique", "ItemTotal": "sum"}) \
.rename({"ItemTotal":"TotalPurchases","InvoiceNo":"Number_of_Orders"},axis = 1) \
.sort_values(by = "TotalPurchases", ascending = False)
cust_purchases.head(15) # only first 15
cust_purchases["Percent_of_TotalSales"] = (cust_purchases["TotalPurchases"]/data["ItemTotal"].sum()).map("{:.2%}".format)
cust_purchases["TotalPurchases"] = cust_purchases["TotalPurchases"].map("£{:,.0f}".format) # format as currency
cust_purchases.head(15) # first 15 only
# Step 1: Filter the dataframe
filtered_data = data[(data['year'] == 2010) & (data['month'] >= 10) | (data['year'] == 2011) & (data['month'] <= 1)]
# find total quantity sold and average unit price for all products
products1 = filtered_data.groupby("Description") \
.agg({"Quantity":"sum", "UnitPrice":"mean"}).reset_index()
products1 = products1[products1["Description"].isin(["DOTCOM","Manual","Discount"]) == False] # remove for plotting
trace = go.Scatter(
x = products1["Quantity"],
y = products1["UnitPrice"],
customdata = products1["Description"],
hovertemplate = "%{customdata}
Quantity Sold: %{x}
UnitPrice: £%{y:.2f}
# Create a new DataFrame for tooltips
tooltip_df = products1[['Description', 'Quantity', 'UnitPrice']]
# Define the plot
scatter_plot = (
ggplot(products1, aes(x='Quantity', y='UnitPrice')) +
geom_point(size=2, color="#1199cf") +
labs(title="Products", x="Quantity Sold", y="Unit Price") +
theme_minimal() +
theme(
plot_title=element_text(size=20),
axis_text_x=element_text(size=10),
axis_text_y=element_text(size=10)
)
)
scatter_plot
Conclusion : We can see that the same product RAGENCY CAKESTAND 3 TIER has again contributed the most. So, it's not like any Christmas-specific changed behavior on that single product.
# Step 1: Filter the dataframe
filtered_data = data[(data['month'] == 2) & data['Quantity']>0]
# find total quantity sold and average unit price for all products
products2 = filtered_data.groupby("Description") \
.agg({"Quantity":"sum", "UnitPrice":"mean"}).reset_index()
products2 = products2[products2["Description"].isin(["DOTCOM","Manual","Discount"]) == False] # remove for plotting
trace = go.Scatter(
x = products2["Quantity"],
y = products2["UnitPrice"],
customdata = products2["Description"],
hovertemplate = "%{customdata}
Quantity Sold: %{x}
UnitPrice: £%{y:.2f}
# Create a new DataFrame for tooltips
tooltip_df = products2[['Description', 'Quantity', 'UnitPrice']]
# Define the plot
scatter_plot = (
ggplot(products2, aes(x='Quantity', y='UnitPrice')) +
geom_point(size=2, color="#1199cf") +
labs(title="Products", x="Quantity Sold", y="Unit Price") +
theme_minimal() +
theme(
plot_title=element_text(size=20),
axis_text_x=element_text(size=10),
axis_text_y=element_text(size=10)
)
)
scatter_plot
WRAP ENGLISH ROSE, GINGHAM ROSE WRAP, WRAP PINK FAIRY CAKES, SET OF 3 CAKE TINS PANTRY DESIGN are relatively sold in higher quantity. So, during this month, the marketing team can target these types of customers to sell products.
<--------------------------------------------------------------------The End------------------------------------------------------------------->
